Smart Electric Wheelchair Handbike With 500W Power Assist For Seniors
Sale price  £1,013.58 GBP Regular price  £1,029.00 GBP

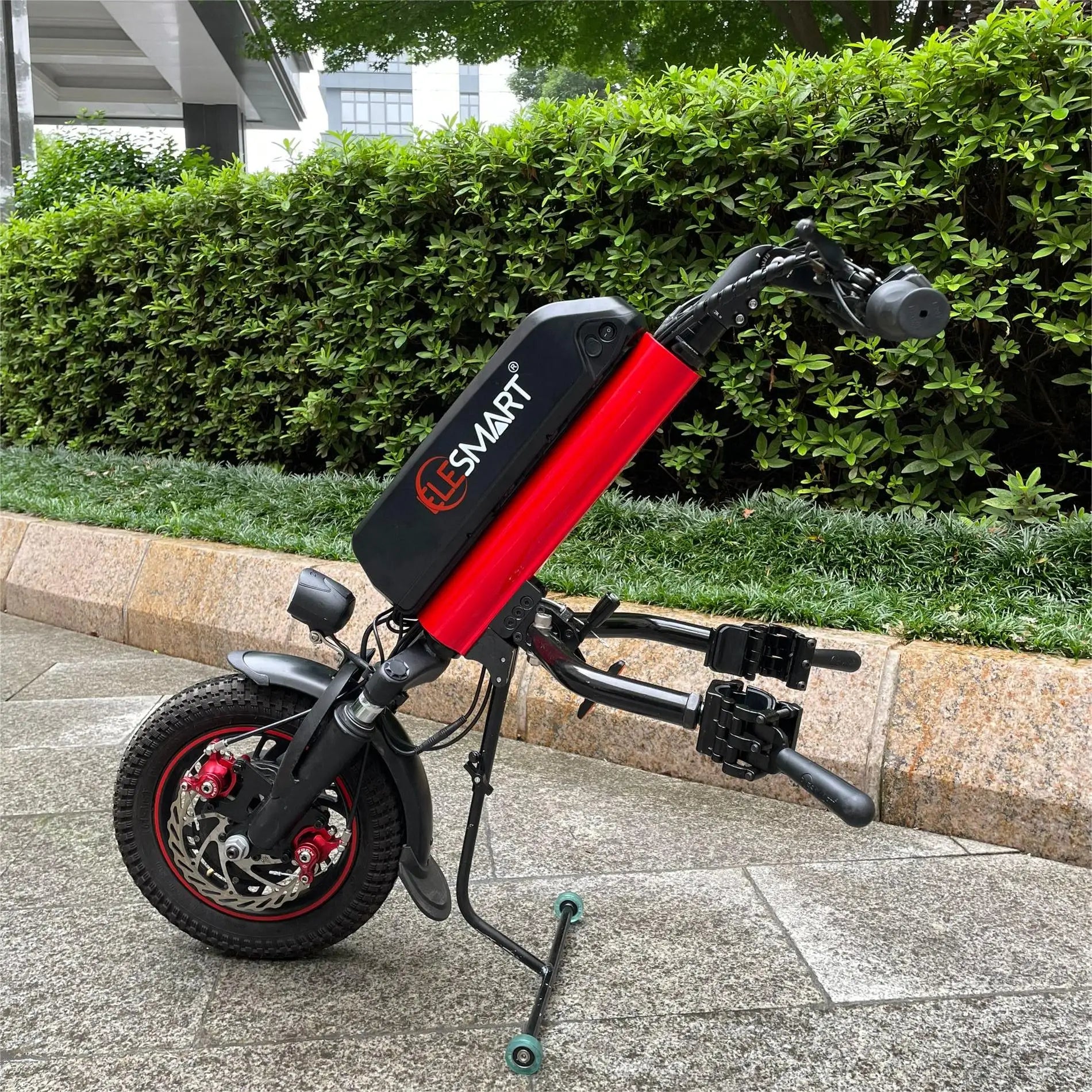

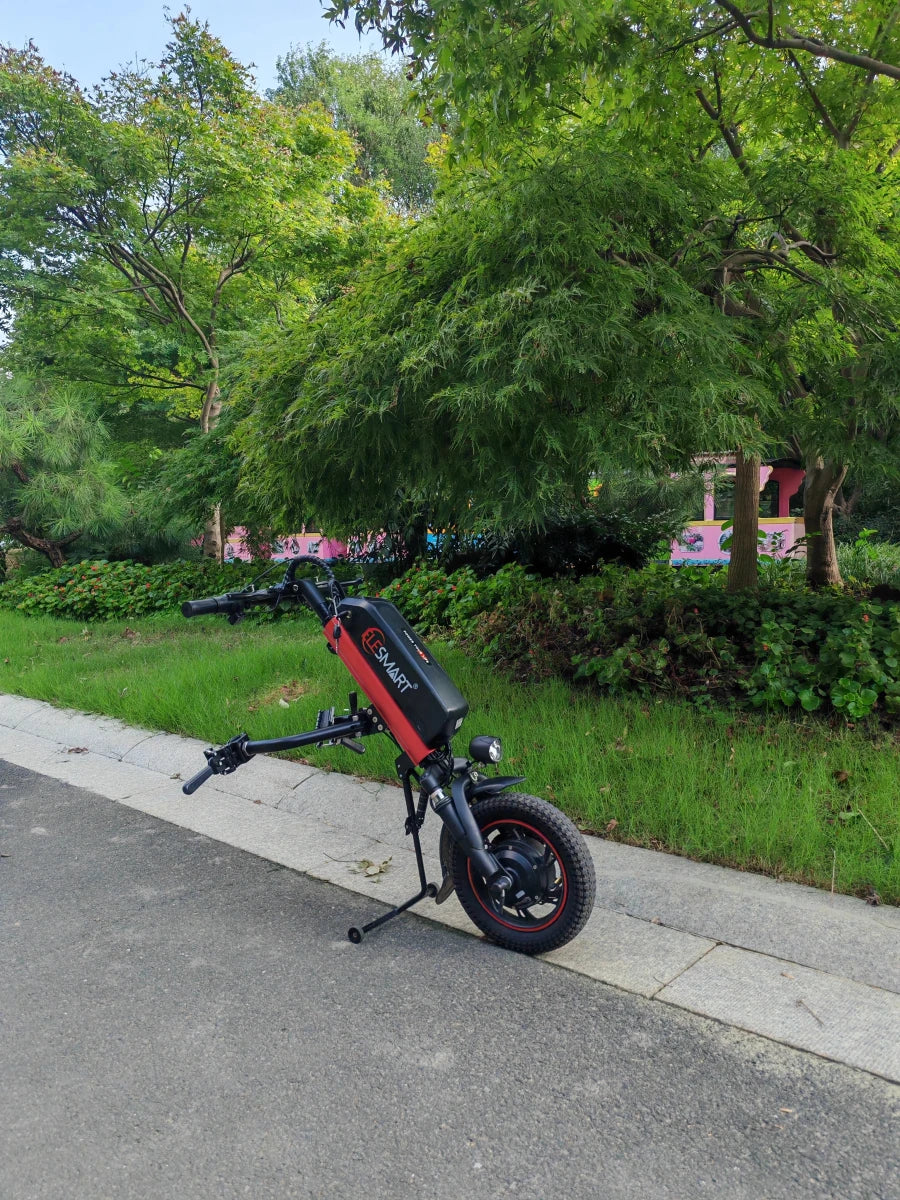

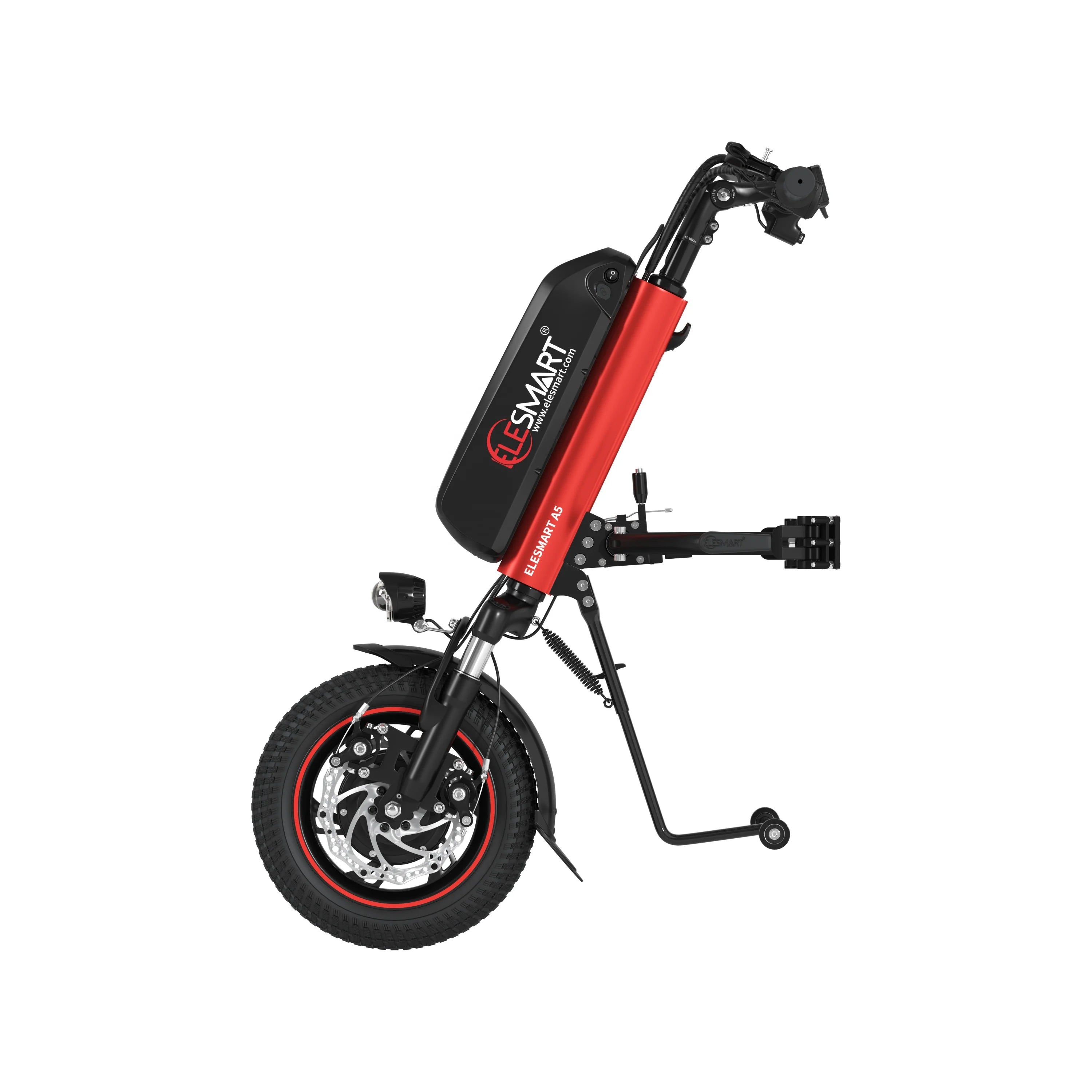

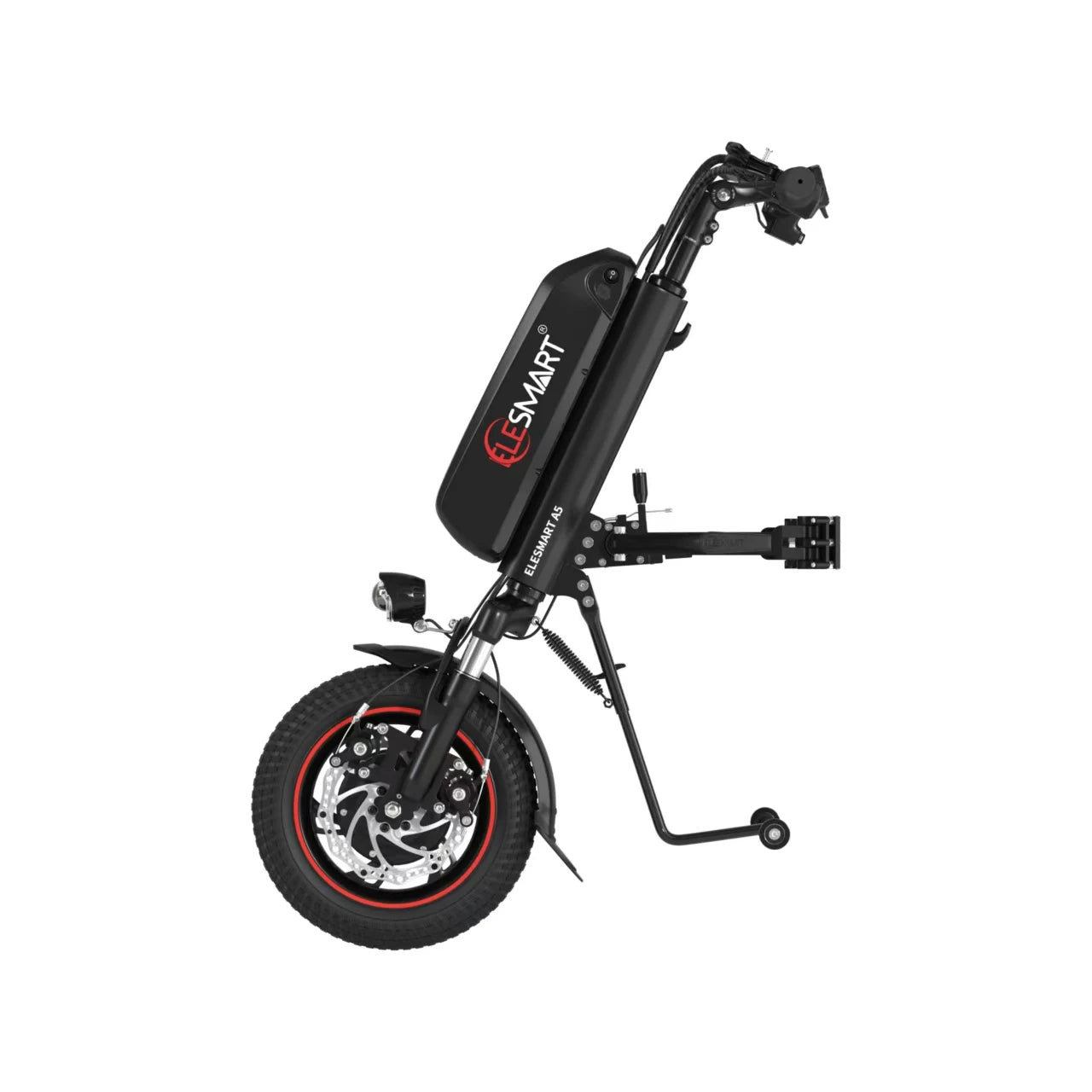

ELESMART A5 36V 500W Motorized Wheelchair Handbike Attachment

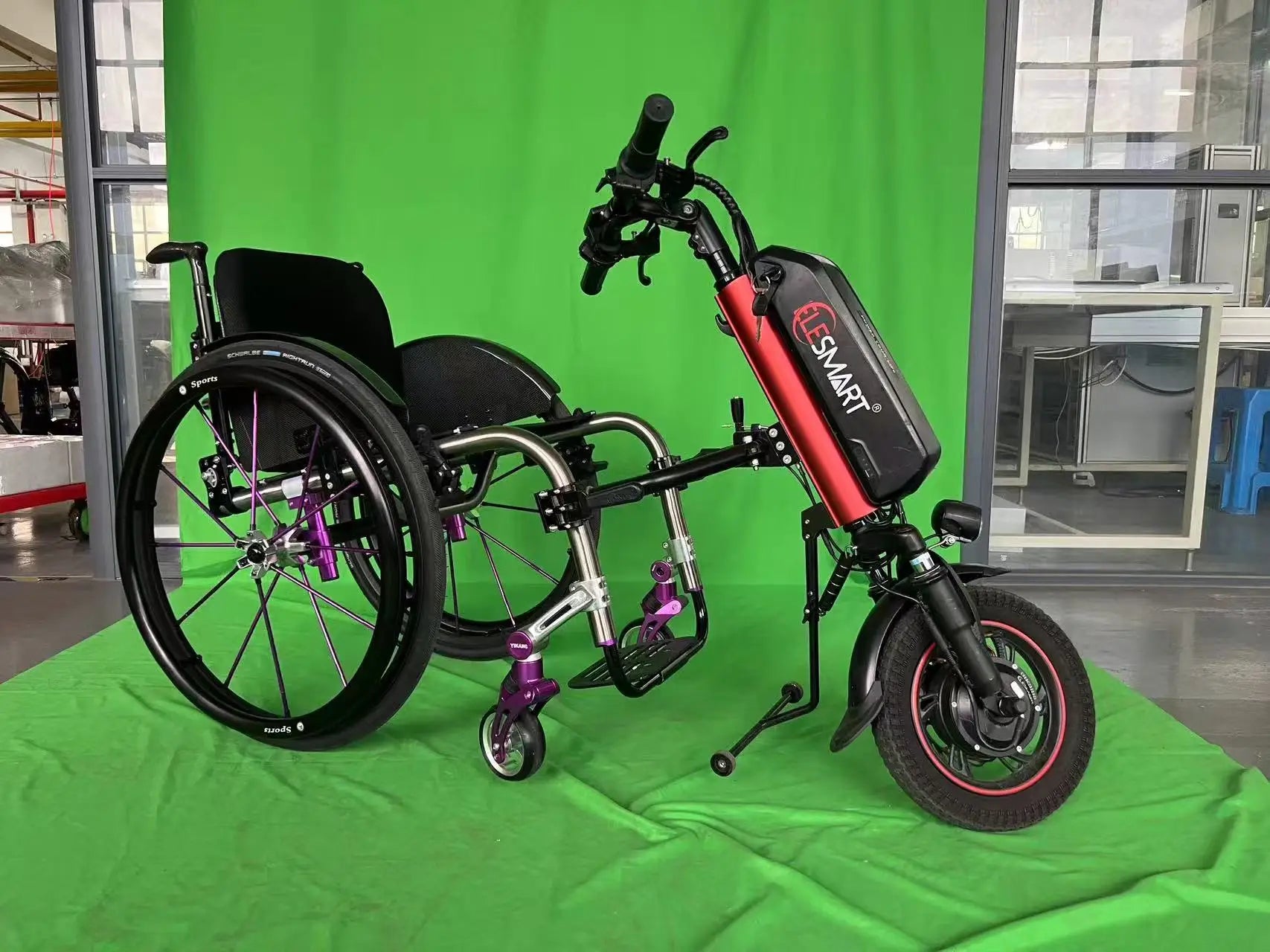

The ELESMART A5 mounts directly to standard wheelchair frames, converting a manual chair into a powered handbike driven by a 500W brushless gear hub motor and 36V 17A controller.

Manual operation is replaced by a half-twist throttle controlling forward and reverse travel. Users select from three lithium battery sizes that slide into the down tube—10.4Ah, 12.8Ah, or 16Ah—to match their daily distance needs. Mounted with the 16Ah pack, the system typically delivers 50–60 kilometers per charge, adjusted for rider weight and surface grade.

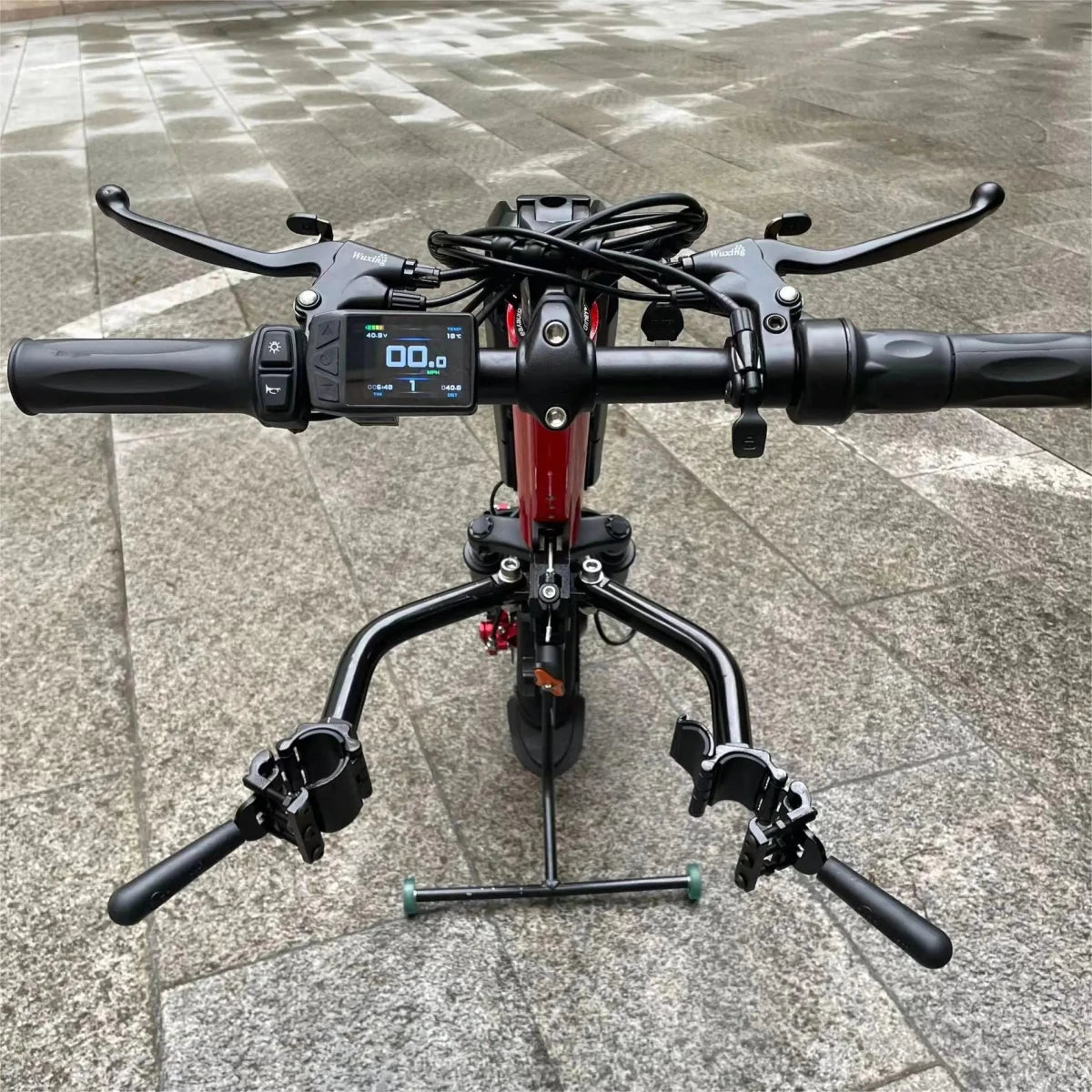

Control and stopping power come from a double disc brake setup and a 90-degree steering geometry designed for tight radius turns and stable deceleration. A built-in LCD monitor displays live battery percentage, speed, and assist mode. The frame weighs 12 kilograms unassisted and reaches approximately 16 kilograms with a battery installed, accommodating payloads up to 100 kilograms (220 lbs).

核心规格与配置

  • Motor: 36V 500W brushless gear hub
  • Controller: 36V 17A paired with half-twist throttle
  • Battery Options: 10.4Ah, 12.8Ah, or 16Ah lithium (down tube mount)
  • Braking: Double disc system
  • Tires: 12-inch rubber wheels
  • Display: Standard LCD005 (LCD007 offered as variant)
  • Maximum Loading: 100 kg / 220 lbs
  • Certifications: CE and ISO compliant

This attachment approach removes the cost and bulk of purchasing a dedicated electric wheelchair while providing reliable propulsion for city commuting, grocery runs, and rehab exercises. The compact chassis folds flat enough for standard sedan trunks and SUV cargo spaces. Freight routes service Europe, Southeast Asia, the United States, Mexico, and Russia; delivery timelines and customs fees vary by destination postcode and selected shipping method.


item
value
Place of Origin
China
Brand Name
ELESMART
Model Number
A5 36V 500W
Battery Capacity
10.4ah/12.8ah/16ah
Power Supply
Lithium Battery
Wheel Size
12"
Display
LCD
Motor Type
Brushless Gear Hub Motor
Battery Position
Down Tube
Properties
Rehabilitation Therapy Supplies
Controller
36v 17A
Loading Capacity
100kg/220lbs
Function
Forward and Reverse
Weight
16kg
Certificate
CE ISO
Display
LCD005 (LCD007 optional)
Throttle
Half-twist
Brake type
Disc Brake
